Assembly One, New Haven CT   The Assembly One Pavilion was the first product of the Assembly project, a seminar initiated by a group of post-professional students at Yale - myself included - and sponsored by ASSA ABLOY. The objective was to design and build a pavilion for the International Arts and Ideas Festival held annually on the New Haven Green. Discourse around the project was focused on the capabilities of digital fabrication as a bridge between design and construction, as well as the ability to produce spectacular surface effects through the manipulation of materials and geometry.





 Normal
 0




 false
 false
 false

 EN-CA
 JA
 X-NONE






































































































































































 /* Style Definitions */
table.MsoNormalTable
	{mso-style-name:"Table Normal";
	mso-tstyle-rowband-size:0;
	mso-tstyle-colband-size:0;
	mso-style-noshow:yes;
	mso-style-priority:99;
	mso-style-parent:"";
	mso-padding-alt:0in 5.4pt 0in 5.4pt;
	mso-para-margin-top:0in;
	mso-para-margin-right:0in;
	mso-para-margin-bottom:10.0pt;
	mso-para-margin-left:0in;
	line-height:115%;
	mso-pagination:widow-orphan;
	font-size:11.0pt;
	font-family:Calibri;
	mso-ascii-font-family:Calibri;
	mso-ascii-theme-font:minor-latin;
	mso-hansi-font-family:Calibri;
	mso-hansi-theme-font:minor-latin;
	mso-ansi-language:EN-CA;}

     The Festival of Arts and Ideas is a two-week annual event and the pavilion had to be constructed and dismantled within a short time period. The structure was sub-divided into twenty-six super-components so that it could be fabricated off-site, delivered and assembled in less than three days.          Assembly One team   Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York  Photo by Chris Morgan Photography

Assembly One, New Haven CT

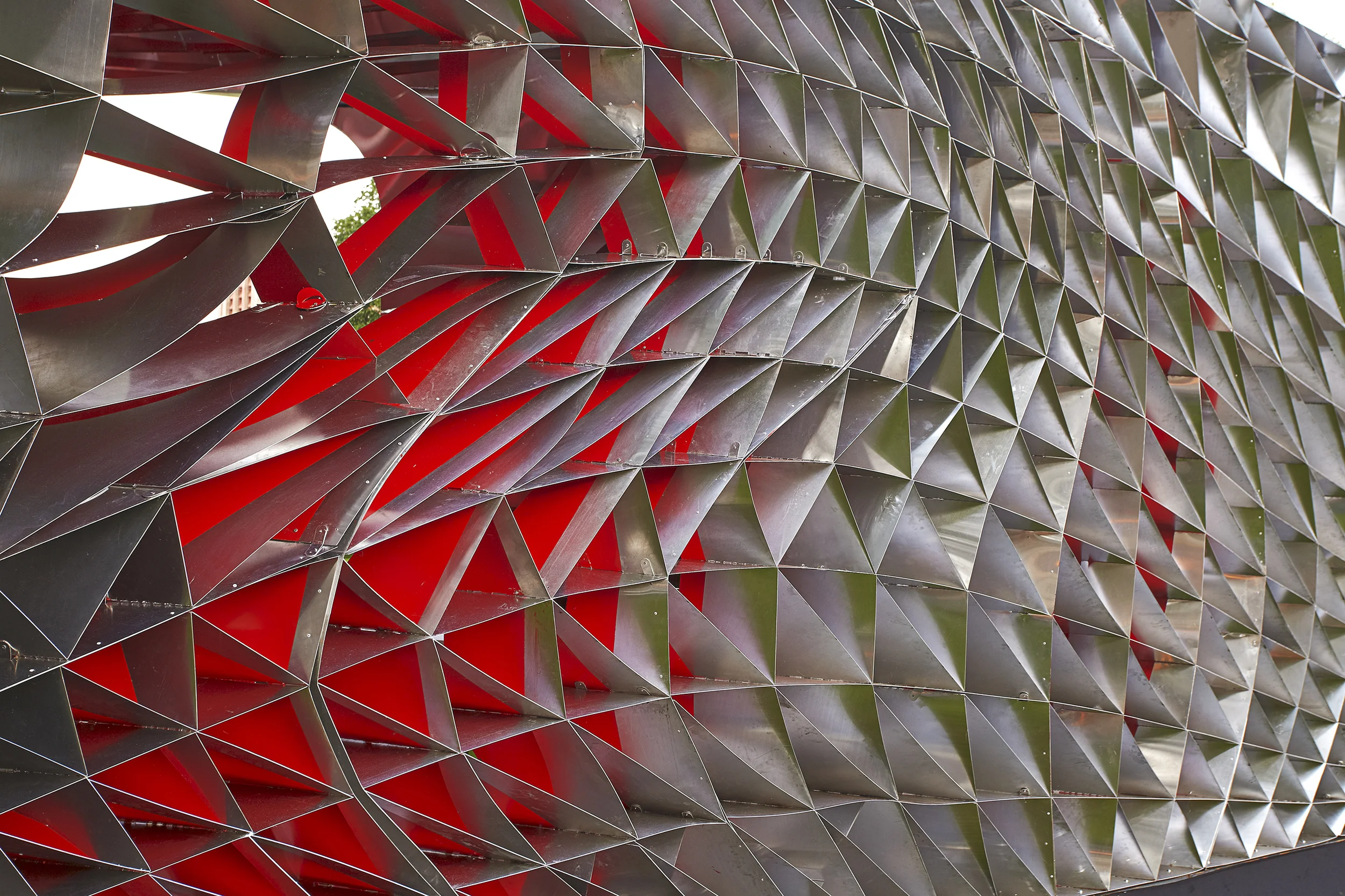

The Assembly One Pavilion was the first product of the Assembly project, a seminar initiated by a group of post-professional students at Yale - myself included - and sponsored by ASSA ABLOY. The objective was to design and build a pavilion for the International Arts and Ideas Festival held annually on the New Haven Green. Discourse around the project was focused on the capabilities of digital fabrication as a bridge between design and construction, as well as the ability to produce spectacular surface effects through the manipulation of materials and geometry.

The Festival of Arts and Ideas is a two-week annual event and the pavilion had to be constructed and dismantled within a short time period. The structure was sub-divided into twenty-six super-components so that it could be fabricated off-site, delivered and assembled in less than three days.



Assembly One team

Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York

Photo by Chris Morgan Photography







 Normal
 0




 false
 false
 false

 EN-CA
 JA
 X-NONE






































































































































































 /* Style Definitions */
table.MsoNormalTable
	{mso-style-name:"Table Normal";
	mso-tstyle-rowband-size:0;
	mso-tstyle-colband-size:0;
	mso-style-noshow:yes;
	mso-style-priority:99;
	mso-style-parent:"";
	mso-padding-alt:0in 5.4pt 0in 5.4pt;
	mso-para-margin-top:0in;
	mso-para-margin-right:0in;
	mso-para-margin-bottom:10.0pt;
	mso-para-margin-left:0in;
	line-height:115%;
	mso-pagination:widow-orphan;
	font-size:11.0pt;
	font-family:Calibri;
	mso-ascii-font-family:Calibri;
	mso-ascii-theme-font:minor-latin;
	mso-hansi-font-family:Calibri;
	mso-hansi-theme-font:minor-latin;
	mso-ansi-language:EN-CA;}







 Normal
 0




 false
 false
 false

 EN-CA
 JA
 X-NONE






































































































































































 /* Style Definitions */
table.MsoNormalTable
	{mso-style-name:"Table Normal";
	mso-tstyle-rowband-size:0;
	mso-tstyle-colband-size:0;
	mso-style-noshow:yes;
	mso-style-priority:99;
	mso-style-parent:"";
	mso-padding-alt:0in 5.4pt 0in 5.4pt;
	mso-para-margin-top:0in;
	mso-para-margin-right:0in;
	mso-para-margin-bottom:10.0pt;
	mso-para-margin-left:0in;
	line-height:115%;
	mso-pagination:widow-orphan;
	font-size:11.0pt;
	font-family:Calibri;
	mso-ascii-font-family:Calibri;
	mso-ascii-theme-font:minor-latin;
	mso-hansi-font-family:Calibri;
	mso-hansi-theme-font:minor-latin;
	mso-ansi-language:EN-CA;}

   Assembly One, New Haven CT





 Normal
 0




 false
 false
 false

 EN-CA
 JA
 X-NONE






































































































































































 /* Style Definitions */
table.MsoNormalTable
	{mso-style-name:"Table Normal";
	mso-tstyle-rowband-size:0;
	mso-tstyle-colband-size:0;
	mso-style-noshow:yes;
	mso-style-priority:99;
	mso-style-parent:"";
	mso-padding-alt:0in 5.4pt 0in 5.4pt;
	mso-para-margin-top:0in;
	mso-para-margin-right:0in;
	mso-para-margin-bottom:10.0pt;
	mso-para-margin-left:0in;
	line-height:115%;
	mso-pagination:widow-orphan;
	font-size:11.0pt;
	font-family:Calibri;
	mso-ascii-font-family:Calibri;
	mso-ascii-theme-font:minor-latin;
	mso-hansi-font-family:Calibri;
	mso-hansi-theme-font:minor-latin;
	mso-ansi-language:EN-CA;}







 Normal
 0




 false
 false
 false

 EN-CA
 JA
 X-NONE






































































































































































 /* Style Definitions */
table.MsoNormalTable
	{mso-style-name:"Table Normal";
	mso-tstyle-rowband-size:0;
	mso-tstyle-colband-size:0;
	mso-style-noshow:yes;
	mso-style-priority:99;
	mso-style-parent:"";
	mso-padding-alt:0in 5.4pt 0in 5.4pt;
	mso-para-margin-top:0in;
	mso-para-margin-right:0in;
	mso-para-margin-bottom:10.0pt;
	mso-para-margin-left:0in;
	line-height:115%;
	mso-pagination:widow-orphan;
	font-size:11.0pt;
	font-family:Calibri;
	mso-ascii-font-family:Calibri;
	mso-ascii-theme-font:minor-latin;
	mso-hansi-font-family:Calibri;
	mso-hansi-theme-font:minor-latin;
	mso-ansi-language:EN-CA;}

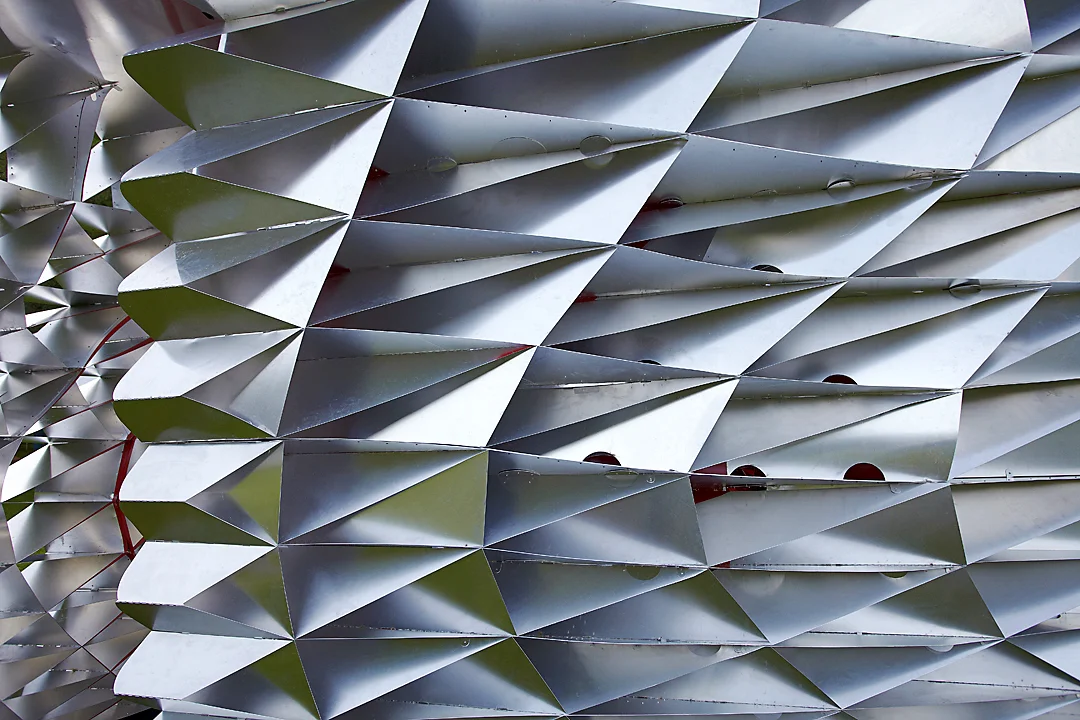

    The pavilion is comprised of approximately 800 unique aluminum pieces, each perforated, notched and painted to specification. Twenty-six super-components were assembled from roughly two dozen pieces each.             Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York           Drawings courtesy of the Assembly One team.

Assembly One, New Haven CT

The pavilion is comprised of approximately 800 unique aluminum pieces, each perforated, notched and painted to specification. Twenty-six super-components were assembled from roughly two dozen pieces each.



Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York



Drawings courtesy of the Assembly One team.

  Assembly One, New Haven CT





 Normal
 0




 false
 false
 false

 EN-CA
 JA
 X-NONE






































































































































































 /* Style Definitions */
table.MsoNormalTable
	{mso-style-name:"Table Normal";
	mso-tstyle-rowband-size:0;
	mso-tstyle-colband-size:0;
	mso-style-noshow:yes;
	mso-style-priority:99;
	mso-style-parent:"";
	mso-padding-alt:0in 5.4pt 0in 5.4pt;
	mso-para-margin-top:0in;
	mso-para-margin-right:0in;
	mso-para-margin-bottom:10.0pt;
	mso-para-margin-left:0in;
	line-height:115%;
	mso-pagination:widow-orphan;
	font-size:11.0pt;
	font-family:Calibri;
	mso-ascii-font-family:Calibri;
	mso-ascii-theme-font:minor-latin;
	mso-hansi-font-family:Calibri;
	mso-hansi-theme-font:minor-latin;
	mso-ansi-language:EN-CA;}

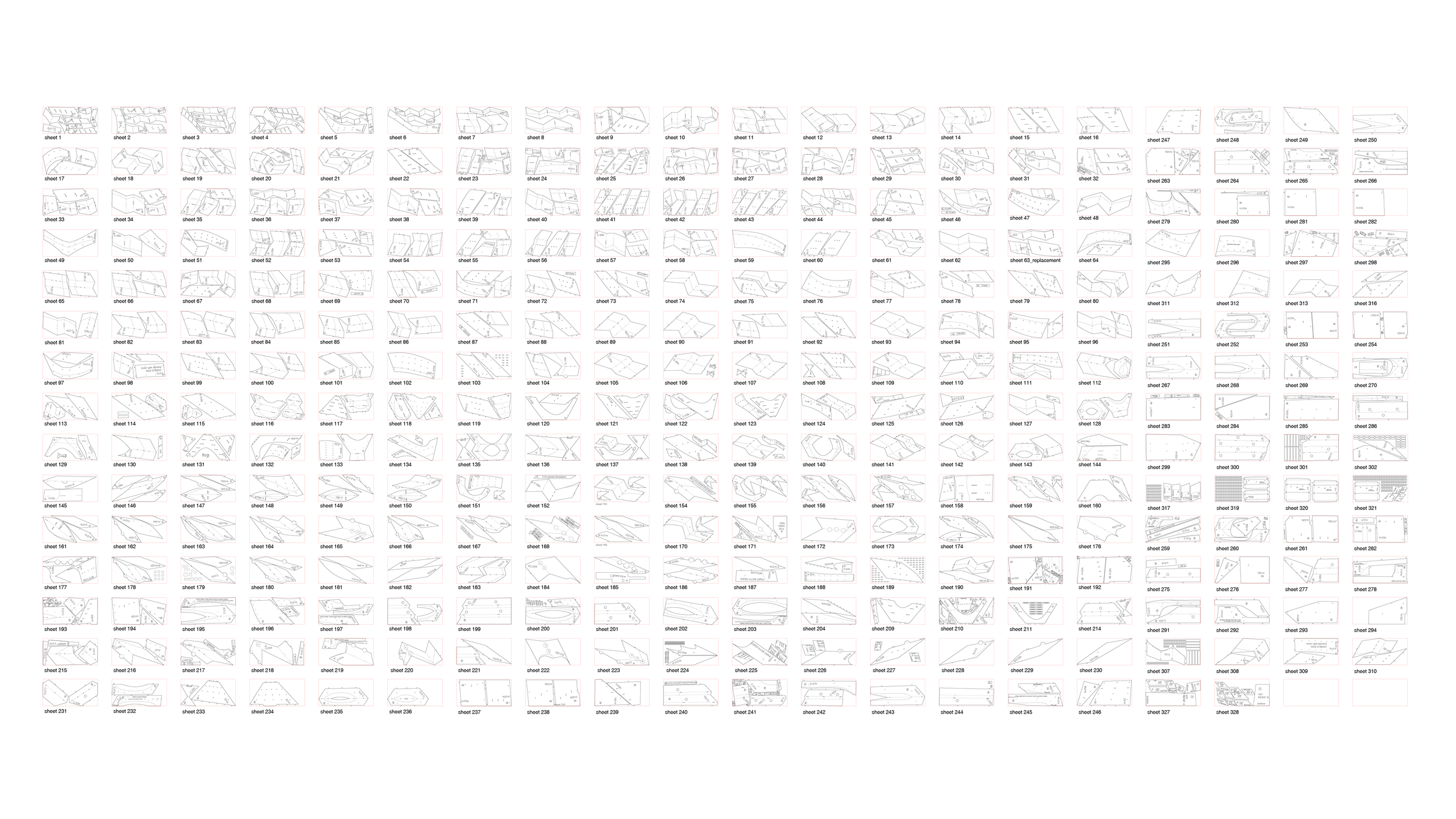

    328 0.05” thick milled aluminum sheets were used, the most efficient of which had only 11% unused material.       Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York     Drawings courtesy of the Assembly One team.

Assembly One, New Haven CT

328 0.05” thick milled aluminum sheets were used, the most efficient of which had only 11% unused material.



Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York



Drawings courtesy of the Assembly One team.

  Assembly One, New Haven CT





 Normal
 0




 false
 false
 false

 EN-CA
 JA
 X-NONE






































































































































































 /* Style Definitions */
table.MsoNormalTable
	{mso-style-name:"Table Normal";
	mso-tstyle-rowband-size:0;
	mso-tstyle-colband-size:0;
	mso-style-noshow:yes;
	mso-style-priority:99;
	mso-style-parent:"";
	mso-padding-alt:0in 5.4pt 0in 5.4pt;
	mso-para-margin-top:0in;
	mso-para-margin-right:0in;
	mso-para-margin-bottom:10.0pt;
	mso-para-margin-left:0in;
	line-height:115%;
	mso-pagination:widow-orphan;
	font-size:11.0pt;
	font-family:Calibri;
	mso-ascii-font-family:Calibri;
	mso-ascii-theme-font:minor-latin;
	mso-hansi-font-family:Calibri;
	mso-hansi-theme-font:minor-latin;
	mso-ansi-language:EN-CA;}

    All the fabrication was done in-house, and cutting was done using a CNC plasma cutter. 328 sheets containing approximately 800 custom cut pieces were processed in a matter of days. All unused aluminum was recycled at the end of construction.      Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New     Photos courtesy of the Assembly One team.

Assembly One, New Haven CT

All the fabrication was done in-house, and cutting was done using a CNC plasma cutter. 328 sheets containing approximately 800 custom cut pieces were processed in a matter of days. All unused aluminum was recycled at the end of construction.



Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New



Photos courtesy of the Assembly One team.



  Assembly One, New Haven CT    Each super-component was fabricated using tab and slot connections that were predetermined and included in the cut pieces. A limited number of universal details ensured efficiency in the assembling of super-components.     Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York     Photo and drawings courtesy of the Assembly One team.

Assembly One, New Haven CT

Each super-component was fabricated using tab and slot connections that were predetermined and included in the cut pieces. A limited number of universal details ensured efficiency in the assembling of super-components.



Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York



Photo and drawings courtesy of the Assembly One team.

  Assembly One, New Haven CT





 Normal
 0




 false
 false
 false

 EN-CA
 JA
 X-NONE






































































































































































 /* Style Definitions */
table.MsoNormalTable
	{mso-style-name:"Table Normal";
	mso-tstyle-rowband-size:0;
	mso-tstyle-colband-size:0;
	mso-style-noshow:yes;
	mso-style-priority:99;
	mso-style-parent:"";
	mso-padding-alt:0in 5.4pt 0in 5.4pt;
	mso-para-margin-top:0in;
	mso-para-margin-right:0in;
	mso-para-margin-bottom:10.0pt;
	mso-para-margin-left:0in;
	line-height:115%;
	mso-pagination:widow-orphan;
	font-size:11.0pt;
	font-family:Calibri;
	mso-ascii-font-family:Calibri;
	mso-ascii-theme-font:minor-latin;
	mso-hansi-font-family:Calibri;
	mso-hansi-theme-font:minor-latin;
	mso-ansi-language:EN-CA;}

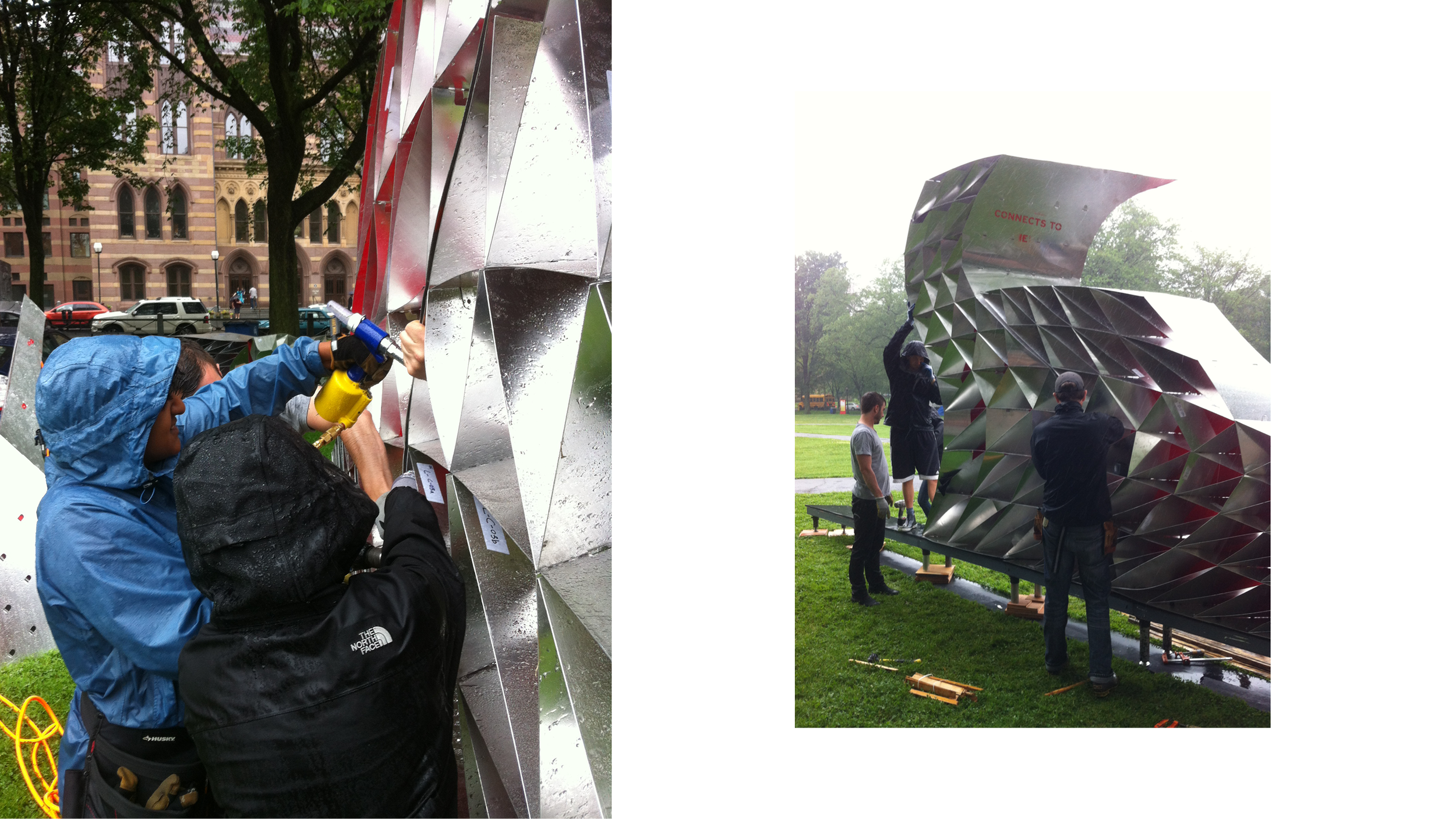

    Aluminum rivets were used to fasten all connections, most of which involved a tab and slot interface.      Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York     Photos courtesy of the Assembly One team.

Assembly One, New Haven CT

Aluminum rivets were used to fasten all connections, most of which involved a tab and slot interface.



Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York



Photos courtesy of the Assembly One team.

  Assembly One, New Haven CT    Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York     Photos courtesy of the Assembly One team.

Assembly One, New Haven CT

Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York



Photos courtesy of the Assembly One team.

  Assembly One, New Haven CT    Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York     Photos courtesy of the Assembly One team.

Assembly One, New Haven CT

Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York



Photos courtesy of the Assembly One team.

  Assembly One, New Haven CT    Super-components ready to be delivered to the site.      Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York     Photos courtesy of the Assembly One team.

Assembly One, New Haven CT

Super-components ready to be delivered to the site.



Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York



Photos courtesy of the Assembly One team.

  Assembly One, New Haven CT





 Normal
 0




 false
 false
 false

 EN-CA
 JA
 X-NONE






































































































































































 /* Style Definitions */
table.MsoNormalTable
	{mso-style-name:"Table Normal";
	mso-tstyle-rowband-size:0;
	mso-tstyle-colband-size:0;
	mso-style-noshow:yes;
	mso-style-priority:99;
	mso-style-parent:"";
	mso-padding-alt:0in 5.4pt 0in 5.4pt;
	mso-para-margin-top:0in;
	mso-para-margin-right:0in;
	mso-para-margin-bottom:10.0pt;
	mso-para-margin-left:0in;
	line-height:115%;
	mso-pagination:widow-orphan;
	font-size:11.0pt;
	font-family:Calibri;
	mso-ascii-font-family:Calibri;
	mso-ascii-theme-font:minor-latin;
	mso-hansi-font-family:Calibri;
	mso-hansi-theme-font:minor-latin;
	mso-ansi-language:EN-CA;}

     Left: Twenty-six super-components were needed for the entire structure, which were assembled and disassembled in a specific order to maintain structural stability at all times.    Right:





 Normal
 0




 false
 false
 false

 EN-CA
 JA
 X-NONE






































































































































































 /* Style Definitions */
table.MsoNormalTable
	{mso-style-name:"Table Normal";
	mso-tstyle-rowband-size:0;
	mso-tstyle-colband-size:0;
	mso-style-noshow:yes;
	mso-style-priority:99;
	mso-style-parent:"";
	mso-padding-alt:0in 5.4pt 0in 5.4pt;
	mso-para-margin-top:0in;
	mso-para-margin-right:0in;
	mso-para-margin-bottom:10.0pt;
	mso-para-margin-left:0in;
	line-height:115%;
	mso-pagination:widow-orphan;
	font-size:11.0pt;
	font-family:Calibri;
	mso-ascii-font-family:Calibri;
	mso-ascii-theme-font:minor-latin;
	mso-hansi-font-family:Calibri;
	mso-hansi-theme-font:minor-latin;
	mso-ansi-language:EN-CA;}

   Assembled bricks stood proudly in the YSOA loading dock before being transported to the site.              Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York     Drawings and photo courtesy of the Assembly One team.

Assembly One, New Haven CT

Left: Twenty-six super-components were needed for the entire structure, which were assembled and disassembled in a specific order to maintain structural stability at all times.

Right:  Assembled bricks stood proudly in the YSOA loading dock before being transported to the site.



Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York



Drawings and photo courtesy of the Assembly One team.

  Assembly One, New Haven CT





 Normal
 0




 false
 false
 false

 EN-CA
 JA
 X-NONE






































































































































































 /* Style Definitions */
table.MsoNormalTable
	{mso-style-name:"Table Normal";
	mso-tstyle-rowband-size:0;
	mso-tstyle-colband-size:0;
	mso-style-noshow:yes;
	mso-style-priority:99;
	mso-style-parent:"";
	mso-padding-alt:0in 5.4pt 0in 5.4pt;
	mso-para-margin-top:0in;
	mso-para-margin-right:0in;
	mso-para-margin-bottom:10.0pt;
	mso-para-margin-left:0in;
	line-height:115%;
	mso-pagination:widow-orphan;
	font-size:11.0pt;
	font-family:Calibri;
	mso-ascii-font-family:Calibri;
	mso-ascii-theme-font:minor-latin;
	mso-hansi-font-family:Calibri;
	mso-hansi-theme-font:minor-latin;
	mso-ansi-language:EN-CA;}

     Each super-component was lifted into place and riveted by hand to its neighbor. Specialty rivets were used on site to distinguish one component from the next.        Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York     Photos courtesy of the Assembly One team.

Assembly One, New Haven CT

Each super-component was lifted into place and riveted by hand to its neighbor. Specialty rivets were used on site to distinguish one component from the next.



Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York



Photos courtesy of the Assembly One team.

  Assembly One, New Haven CT    Only a few sets of hands were needed to lift and install a super-component.      Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York     Photo by Chris Morgan

Assembly One, New Haven CT

Only a few sets of hands were needed to lift and install a super-component.



Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York



Photo by Chris Morgan

  Assembly One, New Haven CT    Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York     Photos by Chris Morgan

Assembly One, New Haven CT

Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York



Photos by Chris Morgan

  Assembly One, New Haven CT





 Normal
 0




 false
 false
 false

 EN-CA
 JA
 X-NONE






































































































































































 /* Style Definitions */
table.MsoNormalTable
	{mso-style-name:"Table Normal";
	mso-tstyle-rowband-size:0;
	mso-tstyle-colband-size:0;
	mso-style-noshow:yes;
	mso-style-priority:99;
	mso-style-parent:"";
	mso-padding-alt:0in 5.4pt 0in 5.4pt;
	mso-para-margin-top:0in;
	mso-para-margin-right:0in;
	mso-para-margin-bottom:10.0pt;
	mso-para-margin-left:0in;
	line-height:115%;
	mso-pagination:widow-orphan;
	font-size:11.0pt;
	font-family:Calibri;
	mso-ascii-font-family:Calibri;
	mso-ascii-theme-font:minor-latin;
	mso-hansi-font-family:Calibri;
	mso-hansi-theme-font:minor-latin;
	mso-ansi-language:EN-CA;}

    The roof diaphragm was made with six super-components that spanned between the two L-shaped walls. The pieces were erected with the help of a five-ton forklift.       Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York     Photo by Chris Morgan

Assembly One, New Haven CT

The roof diaphragm was made with six super-components that spanned between the two L-shaped walls. The pieces were erected with the help of a five-ton forklift.



Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York



Photo by Chris Morgan

  Assembly One, New Haven CT





 Normal
 0




 false
 false
 false

 EN-CA
 JA
 X-NONE






































































































































































 /* Style Definitions */
table.MsoNormalTable
	{mso-style-name:"Table Normal";
	mso-tstyle-rowband-size:0;
	mso-tstyle-colband-size:0;
	mso-style-noshow:yes;
	mso-style-priority:99;
	mso-style-parent:"";
	mso-padding-alt:0in 5.4pt 0in 5.4pt;
	mso-para-margin-top:0in;
	mso-para-margin-right:0in;
	mso-para-margin-bottom:10.0pt;
	mso-para-margin-left:0in;
	line-height:115%;
	mso-pagination:widow-orphan;
	font-size:11.0pt;
	font-family:Calibri;
	mso-ascii-font-family:Calibri;
	mso-ascii-theme-font:minor-latin;
	mso-hansi-font-family:Calibri;
	mso-hansi-theme-font:minor-latin;
	mso-ansi-language:EN-CA;}

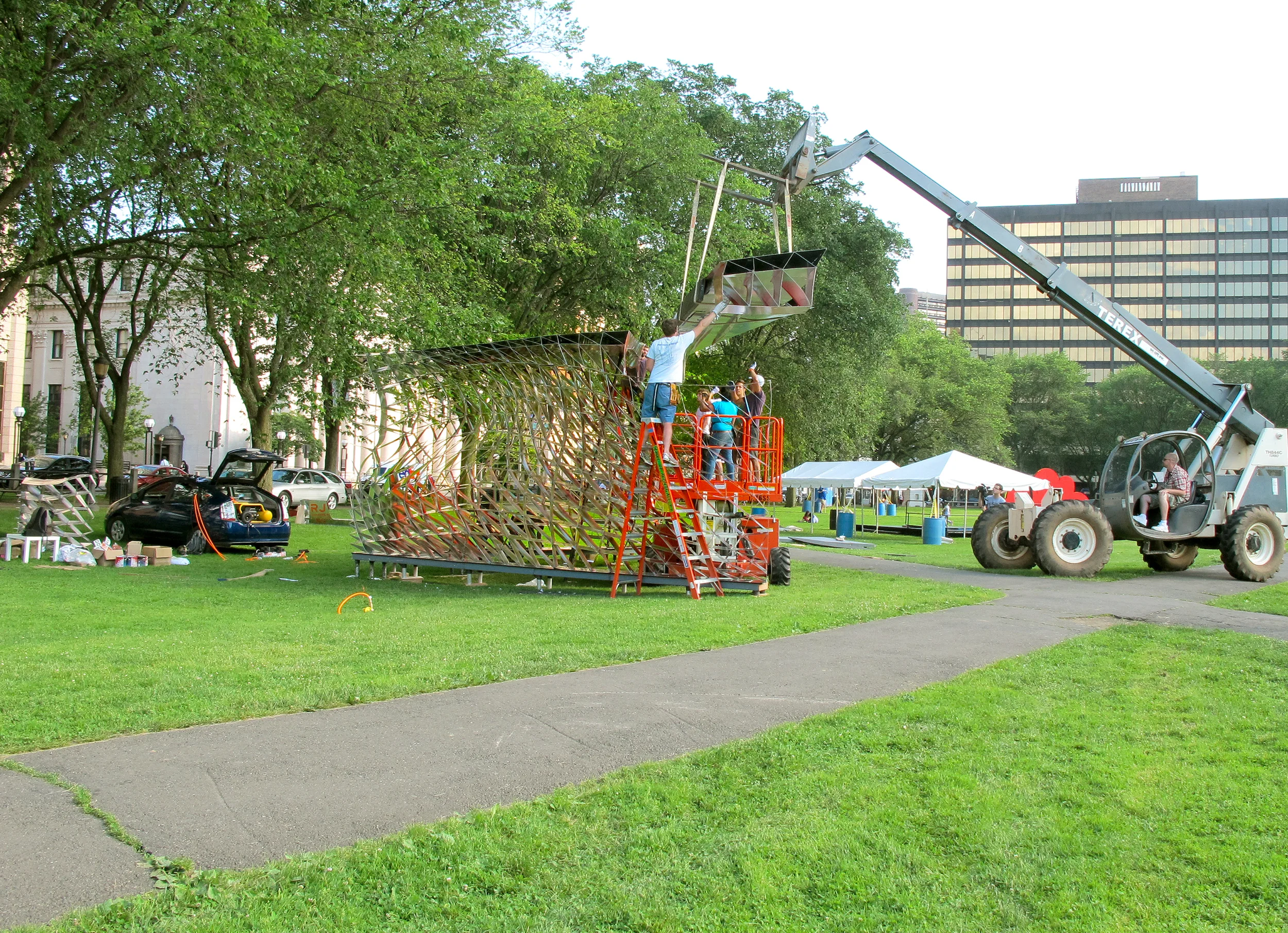

    The roof diaphragm super-components were lifted into place with the help of a five-ton forklift. Fully assembled, the diaphragm helped to stiffen the walls and prevent lateral racking.      One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York     Photo courtesy of the Assembly One team.

Assembly One, New Haven CT

The roof diaphragm super-components were lifted into place with the help of a five-ton forklift. Fully assembled, the diaphragm helped to stiffen the walls and prevent lateral racking.



One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York



Photo courtesy of the Assembly One team.

  Assembly One, New Haven CT    Each super-component was riveted to its neighbor. Specialty rivets were used on site to distinguish one component from the next.     Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York     Photo by Chris Morgan

Assembly One, New Haven CT

Each super-component was riveted to its neighbor. Specialty rivets were used on site to distinguish one component from the next.



Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York



Photo by Chris Morgan

  Assembly One, New Haven CT    Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York     Photo by Chris Morgan

Assembly One, New Haven CT

Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York



Photo by Chris Morgan

  Assembly One, New Haven CT    Once it was assembled, we cleaned the metal for the opening ceremony.     Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York     Photo by Chris Morgan

Assembly One, New Haven CT

Once it was assembled, we cleaned the metal for the opening ceremony.



Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York



Photo by Chris Morgan

  Assembly One, New Haven CT





 Normal
 0




 false
 false
 false

 EN-CA
 JA
 X-NONE






































































































































































 /* Style Definitions */
table.MsoNormalTable
	{mso-style-name:"Table Normal";
	mso-tstyle-rowband-size:0;
	mso-tstyle-colband-size:0;
	mso-style-noshow:yes;
	mso-style-priority:99;
	mso-style-parent:"";
	mso-padding-alt:0in 5.4pt 0in 5.4pt;
	mso-para-margin-top:0in;
	mso-para-margin-right:0in;
	mso-para-margin-bottom:10.0pt;
	mso-para-margin-left:0in;
	line-height:115%;
	mso-pagination:widow-orphan;
	font-size:11.0pt;
	font-family:Calibri;
	mso-ascii-font-family:Calibri;
	mso-ascii-theme-font:minor-latin;
	mso-hansi-font-family:Calibri;
	mso-hansi-theme-font:minor-latin;
	mso-ansi-language:EN-CA;}







 Normal
 0




 false
 false
 false

 EN-CA
 JA
 X-NONE






































































































































































 /* Style Definitions */
table.MsoNormalTable
	{mso-style-name:"Table Normal";
	mso-tstyle-rowband-size:0;
	mso-tstyle-colband-size:0;
	mso-style-noshow:yes;
	mso-style-priority:99;
	mso-style-parent:"";
	mso-padding-alt:0in 5.4pt 0in 5.4pt;
	mso-para-margin-top:0in;
	mso-para-margin-right:0in;
	mso-para-margin-bottom:10.0pt;
	mso-para-margin-left:0in;
	line-height:115%;
	mso-pagination:widow-orphan;
	font-size:11.0pt;
	font-family:Calibri;
	mso-ascii-font-family:Calibri;
	mso-ascii-theme-font:minor-latin;
	mso-hansi-font-family:Calibri;
	mso-hansi-theme-font:minor-latin;
	mso-ansi-language:EN-CA;}

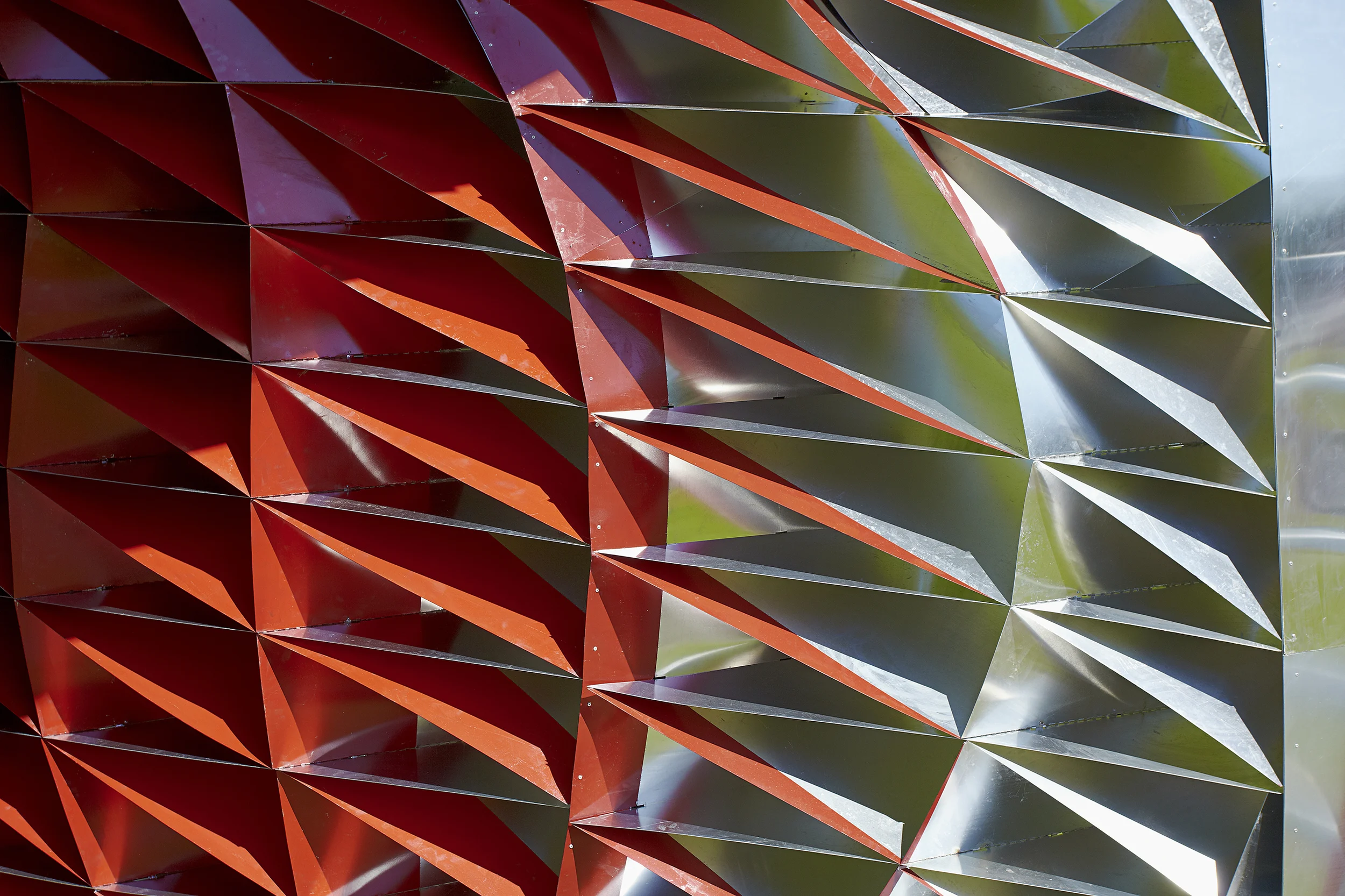

    Assembly One was designed to be integral – skin, structure, aperture, and architectural effect are all embodied within a single system.          Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York     Drawing courtesy of the Assembly One team.  Photo by Chris Morgan.

Assembly One, New Haven CT

Assembly One was designed to be integral – skin, structure, aperture, and architectural effect are all embodied within a single system.



Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York



Drawing courtesy of the Assembly One team.

Photo by Chris Morgan.

  Assembly One, New Haven CT    Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York

Assembly One, New Haven CT

Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York

  Assembly One, New Haven CT    Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York

Assembly One, New Haven CT

Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York

  Assembly One, New Haven CT    Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York

Assembly One, New Haven CT

Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York

  Assembly One, New Haven CT





 Normal
 0




 false
 false
 false

 EN-CA
 JA
 X-NONE






































































































































































 /* Style Definitions */
table.MsoNormalTable
	{mso-style-name:"Table Normal";
	mso-tstyle-rowband-size:0;
	mso-tstyle-colband-size:0;
	mso-style-noshow:yes;
	mso-style-priority:99;
	mso-style-parent:"";
	mso-padding-alt:0in 5.4pt 0in 5.4pt;
	mso-para-margin-top:0in;
	mso-para-margin-right:0in;
	mso-para-margin-bottom:10.0pt;
	mso-para-margin-left:0in;
	line-height:115%;
	mso-pagination:widow-orphan;
	font-size:11.0pt;
	font-family:Calibri;
	mso-ascii-font-family:Calibri;
	mso-ascii-theme-font:minor-latin;
	mso-hansi-font-family:Calibri;
	mso-hansi-theme-font:minor-latin;
	mso-ansi-language:EN-CA;}

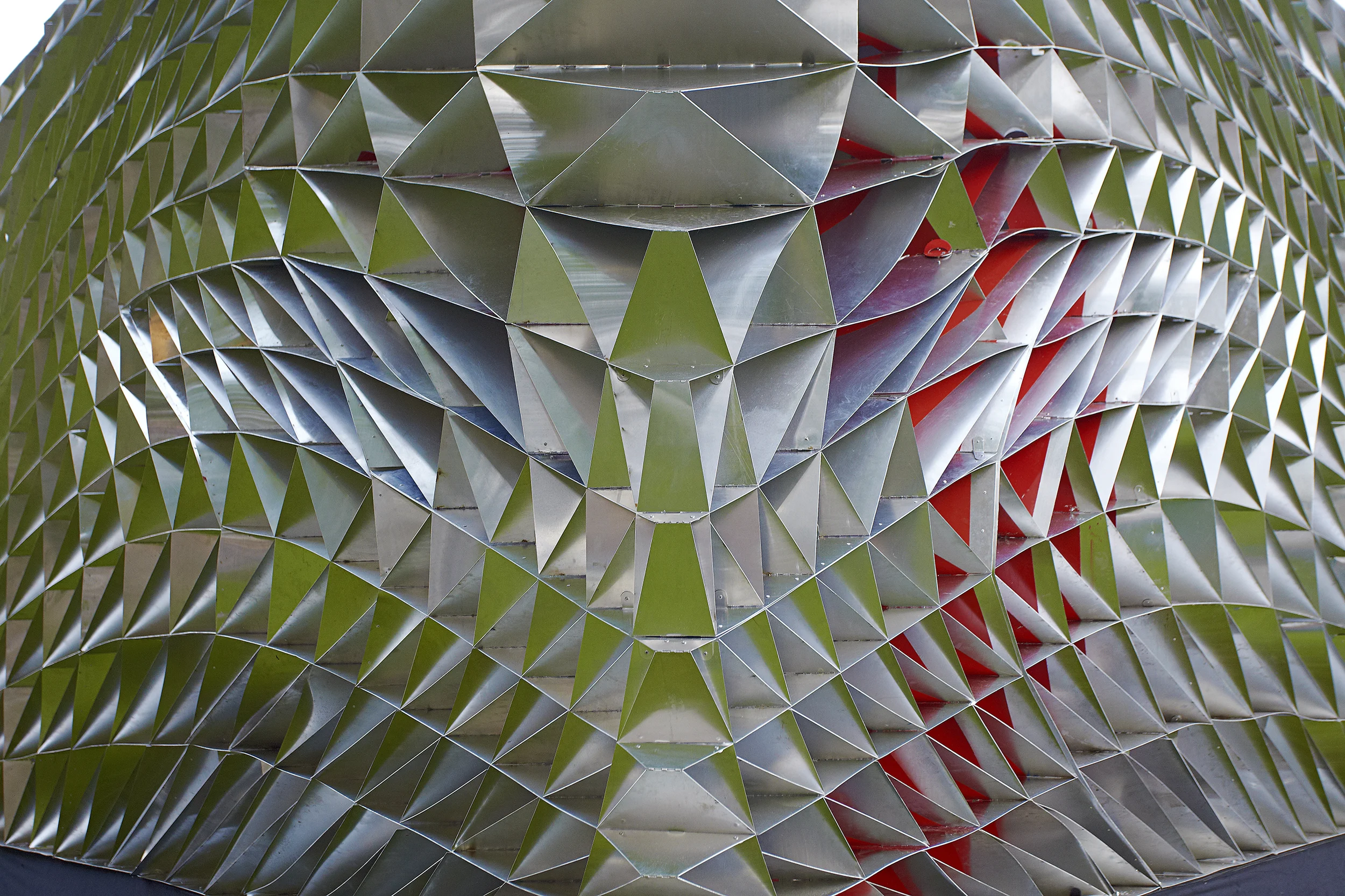

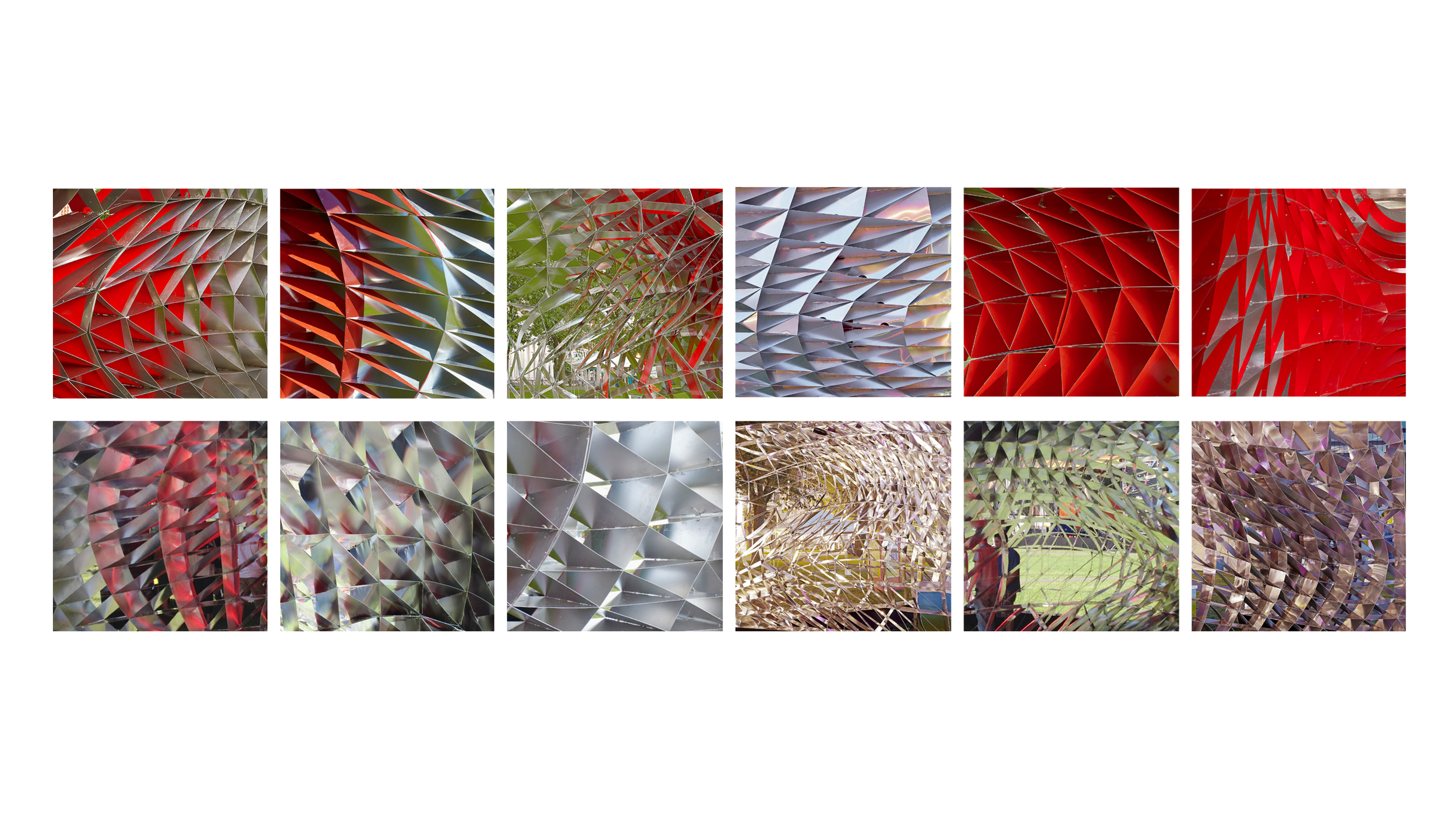

    Assembly One demonstrated the potential to produce spectacular surface effects through the manipulation of geometry and use of color.      Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York

Assembly One, New Haven CT

Assembly One demonstrated the potential to produce spectacular surface effects through the manipulation of geometry and use of color.



Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York

  Assembly One, New Haven CT





 Normal
 0




 false
 false
 false

 EN-CA
 JA
 X-NONE






































































































































































 /* Style Definitions */
table.MsoNormalTable
	{mso-style-name:"Table Normal";
	mso-tstyle-rowband-size:0;
	mso-tstyle-colband-size:0;
	mso-style-noshow:yes;
	mso-style-priority:99;
	mso-style-parent:"";
	mso-padding-alt:0in 5.4pt 0in 5.4pt;
	mso-para-margin-top:0in;
	mso-para-margin-right:0in;
	mso-para-margin-bottom:10.0pt;
	mso-para-margin-left:0in;
	line-height:115%;
	mso-pagination:widow-orphan;
	font-size:11.0pt;
	font-family:Calibri;
	mso-ascii-font-family:Calibri;
	mso-ascii-theme-font:minor-latin;
	mso-hansi-font-family:Calibri;
	mso-hansi-theme-font:minor-latin;
	mso-ansi-language:EN-CA;}

    The concept behind the pavilion was to create a camouflaged figure, visible from almost anywhere on the green but invisible from the main performance stage. To do this an attractor point was positioned near the stage and all the structural members are angled to converge on this point.  Right: View of the pavilion from the vanishing point.          Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York

Assembly One, New Haven CT

The concept behind the pavilion was to create a camouflaged figure, visible from almost anywhere on the green but invisible from the main performance stage. To do this an attractor point was positioned near the stage and all the structural members are angled to converge on this point.

Right: View of the pavilion from the vanishing point.



Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York

  Assembly One, New Haven CT    Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York

Assembly One, New Haven CT

Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York

  Assembly One, New Haven CT    Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York

Assembly One, New Haven CT

Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York

  Assembly One, New Haven CT       An aerial view of the Festival of Arts and Ideas in June of 2012, on opening weekend. The Assembly Pavilion served as the information booth and a central meeting point for tours and programs.     Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York     Photo by Chris Morgan

Assembly One, New Haven CT



An aerial view of the Festival of Arts and Ideas in June of 2012, on opening weekend. The Assembly Pavilion served as the information booth and a central meeting point for tours and programs.



Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York



Photo by Chris Morgan

  Assembly One, New Haven CT





 Normal
 0




 false
 false
 false

 EN-CA
 JA
 X-NONE






































































































































































 /* Style Definitions */
table.MsoNormalTable
	{mso-style-name:"Table Normal";
	mso-tstyle-rowband-size:0;
	mso-tstyle-colband-size:0;
	mso-style-noshow:yes;
	mso-style-priority:99;
	mso-style-parent:"";
	mso-padding-alt:0in 5.4pt 0in 5.4pt;
	mso-para-margin-top:0in;
	mso-para-margin-right:0in;
	mso-para-margin-bottom:10.0pt;
	mso-para-margin-left:0in;
	line-height:115%;
	mso-pagination:widow-orphan;
	font-size:11.0pt;
	font-family:Calibri;
	mso-ascii-font-family:Calibri;
	mso-ascii-theme-font:minor-latin;
	mso-hansi-font-family:Calibri;
	mso-hansi-theme-font:minor-latin;
	mso-ansi-language:EN-CA;}

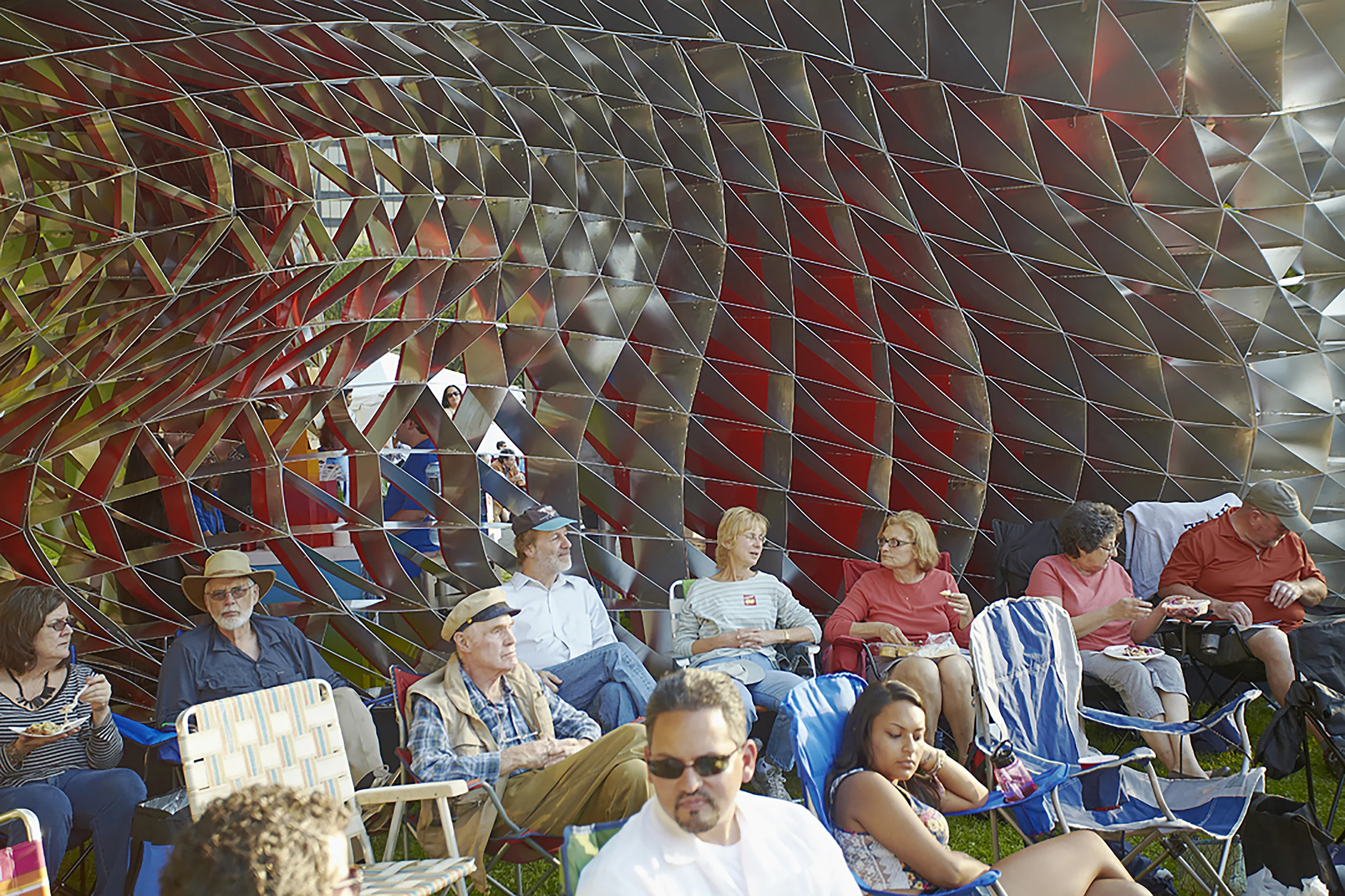

    The pavilion was completed just in time for the opening event of the Festival.      Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York     Photo by Chris Morgan

Assembly One, New Haven CT

The pavilion was completed just in time for the opening event of the Festival.



Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York



Photo by Chris Morgan

  Assembly One, New Haven CT    Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York     Photo by Chris Morgan

Assembly One, New Haven CT

Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York



Photo by Chris Morgan

  Assembly One, New Haven CT    Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York     Photo by Chris Morgan

Assembly One, New Haven CT

Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York



Photo by Chris Morgan

  Assembly One, New Haven CT    Assembly One team:   Jacqueline Ho  and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.  Structural Consultant: Matthew Clark of Arup New York     Photo by Chris Morgan

Assembly One, New Haven CT

Assembly One team:  Jacqueline Ho and Amy Mielke (Project Managers), David Bench, Zac Heaps, Eric Zahn, Brennan Buck (faculty advisor), Nicholas Hunt, John Lacy, JT Bachman, Veer Nanavatty, Seema Kairam, Robert Bundy, Raven Hardison, Matthew Hettler.

Structural Consultant: Matthew Clark of Arup New York



Photo by Chris Morgan
